The Lexus RX has been a cornerstone of the luxury SUV market since its introduction in 1997. Throughout its various generations, the RX has evolved not only in design and technology but also in its wheel and tire specifications. Understanding these specifications is crucial for owners looking to replace or upgrade their wheels and tires.

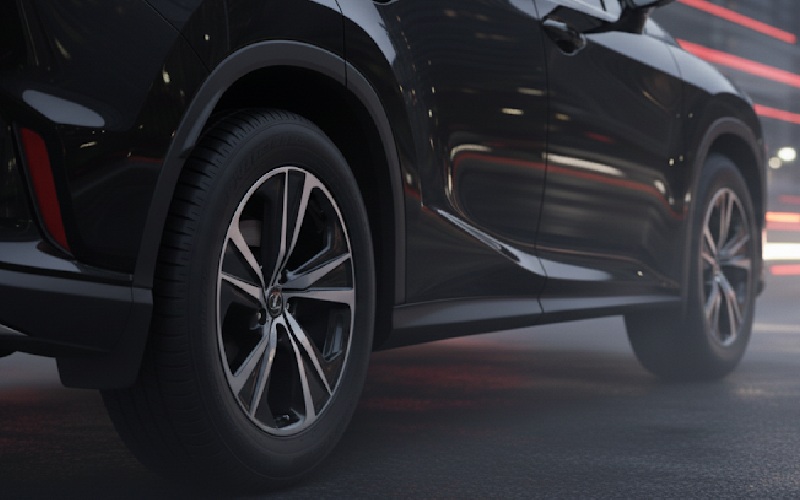

2025 Lexus RX 350 Wheels
First Generation XU10 (1997-2003)
The inaugural Lexus RX 300 established the foundation for what would become one of the most successful luxury crossover SUVs in the market. During this period, Lexus kept the wheel specifications relatively straightforward.
Standard Wheel Specifications
Rim Size: 16 x 6.5J (base models)
- Optional Rim Size: 17 x 6.5J (premium models)
- PCD (Bolt Pattern): 5×114.3 mm
- Center Bore: 60.1 mm
- Offset: +35 mm
- Lug Nut Thread Size: M12 x 1.5
- Wheel Material: Aluminum alloy
Original Tire Specifications
- Standard Tire Size: 225/70R16
- Optional Tire Size: 225/65R17
- Recommended Tire Pressure: 220 kPa (32 PSI) front and rear
The first-generation RX models had a balanced approach to comfort and handling. The relatively high-profile tires provided excellent ride quality, while the modest wheel sizes kept unsprung weight manageable for better suspension response.
Second Generation XU30 (2003-2009)
The second-generation RX saw significant upgrades in design and performance, reflected in its wheel and tire specifications. This generation included the RX 330 and, later, the RX 350.
Standard Wheel Specifications
- Rim Size: 17 x 7J (base models)
- Optional Rim Size: 18 x 7J (premium models)
- PCD (Bolt Pattern): 5×114.3 mm
- Center Bore: 60.1 mm
- Offset: +35 mm (standard wheels)
- Lug Nut Thread Size: M12 x 1.5
- Wheel Material: Aluminum alloy
Original Tire Specifications
- Standard Tire Size: 225/65R17
- Optional Tire Size: 235/55R18
- Recommended Tire Pressure: 230 kPa (33 PSI) front, 230 kPa (33 PSI) rear
The second-generation RX models featured a wider range of wheel options, allowing owners to balance aesthetics, comfort, and performance according to their preferences. The introduction of 18-inch wheels as an option signalled a trend toward larger wheel sizes that would continue in future generations.
Third Generation AL10 (2009-2015)
The third-generation RX represented a significant evolution in the model’s design language and technological offerings. This generation saw the introduction of the RX 450h hybrid variant alongside the RX 350.
Standard Wheel Specifications
- Rim Size: 18 x 7.5J (base models)
- Optional Rim Size: 19 x 7.5J (premium and F Sport models)
- PCD (Bolt Pattern): 5×114.3 mm
- Center Bore: 60.1 mm
- Offset: +35 mm (standard wheels), +40 mm (F Sport models)
- Lug Nut Thread Size: M12 x 1.5
- Wheel Tightening Torque: 103 Nm
- Wheel Material: Aluminum alloy
Original Tire Specifications
- Standard Tire Size: 235/60R18
- Optional Tire Size: 235/55R19
- F Sport Tire Size: 235/55R19
- Recommended Tire Pressure: 230 kPa (33 PSI) front, 230 kPa (33 PSI) rear
During this generation, Lexus placed greater emphasis on the driving dynamics of the RX, reflected in the wider wheels and lower-profile tires. The F Sport models, with their unique offset, provided improved handling characteristics and a more aggressive stance.
Fourth Generation AL20 (2015-2022)
The fourth-generation RX underwent a dramatic styling transformation, featuring the bold “spindle grille” design language that defined Lexus vehicles of this era. The wheel specifications for this generation reflected the vehicle’s more dynamic orientation.
Standard Wheel Specifications
- Rim Size: 18 x 8J (base models)
- Optional Rim Size: 20 x 8J (premium models)
- F Sport Rim Size: 20 x 8J (F Sport models)
- PCD (Bolt Pattern): 5×114.3 mm
- Center Bore: 60.1 mm
- Offset: +30 mm (standard 18-inch wheels), +35 mm (standard 20-inch wheels), +30 mm (F Sport wheels)
- Lug Nut Thread Size: M12 x 1.5
- Wheel Tightening Torque: 103 Nm
- Wheel Material: Aluminum alloy (with special finish options on premium models)
Original Tire Specifications
- Standard Tire Size: 235/65R18
- Optional Tire Size: 235/55R20
- F Sport Tire Size: 235/55R20
- Recommended Tire Pressure: 240 kPa (35 PSI) front, 240 kPa (35 PSI) rear
The fourth-generation RX featured wider wheels across all models, improving stability and cornering performance. The 20-inch wheel options became increasingly popular during this generation, offering improved aesthetics and road presence.
Fifth Generation AL30 (2022-Present)
The current generation of the Lexus RX continues the model’s evolution with a more refined design and advanced technology. The wheel specifications for this generation emphasize both performance and luxury.
Standard Wheel Specifications
- Rim Size: 19 x 8J (base models)
- Optional Rim Size: 21 x 8.5J (premium models)
- F Sport Rim Size: 21 x 8.5J (F Sport models)
- PCD (Bolt Pattern): 5×114.3 mm
- Center Bore: 60.1 mm
- Offset: +30 mm (19-inch wheels), +40 mm (21-inch wheels)
- Lug Nut Thread Size: M12 x 1.5
- Wheel Tightening Torque: 103 Nm
- Wheel Material: Aluminum alloy (with machine finish and dark accent options)
Original Tire Specifications
- Standard Tire Size: 235/60R19
- Optional Tire Size: 235/50R21
- F Sport Tire Size: 235/50R21
- Recommended Tire Pressure: 250 kPa (36 PSI) front, 250 kPa (36 PSI) rear
The fifth-generation RX features the largest wheels in the model’s history, with 21-inch options providing an imposing presence and enhanced handling capabilities. The higher inflation pressures reflect the vehicle’s focus on efficiency and performance.
Winter Tire Considerations
For owners in regions with severe winter conditions, Lexus typically recommends a wheel and tire package with reduced rim diameter and increased sidewall height. This configuration improves traction in snow and ice conditions.
Recommended Winter Wheel and Tire Packages
First Generation (1997-2003)
- Winter Rim Size: 16 x 6.5J
- Winter Tire Size: 225/70R16
Second Generation (2003-2009)
- Winter Rim Size: 17 x 7J
- Winter Tire Size: 225/65R17
Third Generation (2009-2015)
- Winter Rim Size: 18 x 7.5J
- Winter Tire Size: 235/60R18
Fourth Generation (2015-2022)
- Winter Rim Size: 18 x 8J
- Winter Tire Size: 235/65R18
Fifth Generation (2022-Present)
- Winter Rim Size: 19 x 8J
- Winter Tire Size: 235/60R19
Winter tires typically require different inflation pressures, usually 10-20 kPa lower than the recommended pressures for all-season or summer tires due to the different rubber compounds used.
Tire Pressure Monitoring System (TPMS)
All Lexus RX models from 2008 onward feature a Tire Pressure Monitoring System that continuously monitors inflation pressures. When replacing wheels or tires, it’s essential to ensure compatibility with the vehicle’s TPMS.
The TPMS sensors are installed on the valve stems inside each wheel and communicate wirelessly with the vehicle’s onboard computer. The system alerts the driver when tire pressure drops below a predetermined threshold, typically 25% below the recommended inflation pressure.
Lexus RX: Luxury and Performance
The wheel and tire specifications of the Lexus RX have evolved significantly over the model’s lifetime, reflecting changes in design philosophy, performance expectations, and technological capabilities. From the modest 16-inch wheels of the first generation to the imposing 21-inch options available today, each iteration has balanced aesthetics, comfort, and performance to deliver the luxury SUV experience Lexus customers expect.
Understanding these specifications is essential for owners looking to maintain or upgrade their vehicles, ensuring compatibility, safety, and optimal performance. Whether replacing damaged wheels, upgrading to a more stylish option, or switching between seasonal tire packages, knowledge of your RX wheel specifications will guide you toward making informed decisions that enhance your driving experience.
5 Facts About Lexus RX Wheels and Tires
- The Lexus RX was one of the first luxury SUVs to feature run-flat tires as an option, allowing the vehicle to continue driving for up to 80 kilometres after a puncture.
- The fifth-generation RX F Sport models feature a unique wheel design with a special coating that resists brake dust accumulation, keeping the wheels cleaner for longer periods.
- The center bore diameter of 60.1 mm has remained consistent across all generations of the RX, making it possible to use wheel adaptors to fit wheels from other vehicles.
- Lexus engineers test RX wheels in extreme temperature conditions, from -40°C to +80°C, to ensure performance in all climates.
- The weight difference between the standard 18-inch wheels and the optional 21-inch wheels on the latest RX is approximately 3 kg per wheel, significantly affecting unsprung weight and driving dynamics.
Questions and Answers
What is the bolt pattern for all Lexus RX models?
- All generations use a 5×114.3 mm bolt pattern (also known as 5×4.5 inches in imperial measurements).
Can I use wheels from other Lexus or Toyota models on my RX?
- Yes, provided they share the same 5×114.3 mm bolt pattern, 60.1 mm center bore, and have a compatible offset range (typically +30 mm to +40 mm). Models like the Toyota Highlander, Lexus ES, and Lexus NX often have compatible wheels.
What happens if I use wheels with a different offset than recommended?
- Using wheels with a significantly different offset can affect handling, cause premature tire wear, and potentially lead to interference with suspension components. A difference of ±5 mm is generally acceptable, but larger deviations should be avoided.
How do wheel size and offset affect fuel efficiency?
- Larger, heavier wheels increase unsprung weight and rolling resistance, potentially reducing fuel efficiency by 2-5%. Every 25 mm increase in wheel diameter typically results in a 1-2% decrease in fuel economy.
Do I need to reprogram my TPMS when switching between summer and winter wheels?
- Most RX models from 2015 onward feature automatic TPMS recognition, but earlier models may require sensor reprogramming when switching wheel sets. This can typically be performed at a Lexus dealership or specialized tire shop.
